[原創] IdentityServer4 登錄成功后跳轉發生錯誤

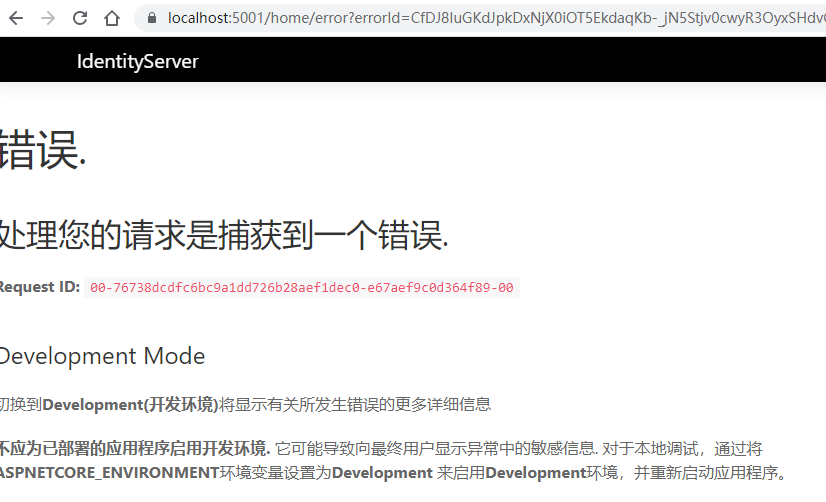

IdentityServer4官網自帶的DEMO，登錄成功后跳轉到請求網站，登錄過程是直接form提交的，我嫌棄官方的登錄不安全，字段明文發送，所以加了RSA加密，并把表單提交改為AJAX提交，于是后臺也相應的做了代碼改動，結果大功告成的時候拿去登錄測試，出現以下的界面：
同時，在控制臺界面中輸出以下錯誤信息。
info: WinsWEB.Controllers.AccountController[0]
用戶成功登錄.
info: IdentityServer4.Hosting.IdentityServerMiddleware[0]
Invoking IdentityServer endpoint: IdentityServer4.Endpoints.AuthorizeCallbackEndpoint for /connect/authorize/callback
info: Microsoft.EntityFrameworkCore.Infrastructure[10403]
Entity Framework Core 6.0.10 initialized 'ConfigurationDbContext' using provider 'Microsoft.EntityFrameworkCore.Sqlite:6.0.10' with options: MigrationsAssembly=WinsWEB
info: Microsoft.EntityFrameworkCore.Database.Command[20101]
Executed DbCommand (0ms) [Parameters=[@__clientId_0='?' (Size = 3)], CommandType='Text', CommandTimeout='30']
SELECT "c"."Id", "c"."AbsoluteRefreshTokenLifetime", "c"."AccessTokenLifetime", "c"."AccessTokenType", "c"."AllowAccessTokensViaBrowser", "c"."AllowOfflineAccess", "c"."AllowPlainTextPkce", "c"."AllowRememberConsent", "c"."AllowedIdentityTokenSigningAlgorithms", "c"."AlwaysIncludeUserClaimsInIdToken", "c"."AlwaysSendClientClaims", "c"."AuthorizationCodeLifetime", "c"."BackChannelLogoutSessionRequired", "c"."BackChannelLogoutUri", "c"."ClientClaimsPrefix", "c"."ClientId", "c"."ClientName", "c"."ClientUri", "c"."ConsentLifetime", "c"."Created", "c"."Description", "c"."DeviceCodeLifetime", "c"."EnableLocalLogin", "c"."Enabled", "c"."FrontChannelLogoutSessionRequired", "c"."FrontChannelLogoutUri", "c"."IdentityTokenLifetime", "c"."IncludeJwtId", "c"."LastAccessed", "c"."LogoUri", "c"."NonEditable", "c"."PairWiseSubjectSalt", "c"."ProtocolType", "c"."RefreshTokenExpiration", "c"."RefreshTokenUsage", "c"."RequireClientSecret", "c"."RequireConsent", "c"."RequirePkce", "c"."RequireRequestObject", "c"."SlidingRefreshTokenLifetime", "c"."UpdateAccessTokenClaimsOnRefresh", "c"."Updated", "c"."UserCodeType", "c"."UserSsoLifetime"
FROM "Clients" AS "c"
WHERE "c"."ClientId" = @__clientId_0
info: Microsoft.EntityFrameworkCore.Database.Command[20101]
Executed DbCommand (0ms) [Parameters=[@__clientId_0='?' (Size = 3)], CommandType='Text', CommandTimeout='30']
SELECT "c0"."Id", "c0"."ClientId", "c0"."Origin"
FROM "Clients" AS "c"
INNER JOIN "ClientCorsOrigins" AS "c0" ON "c"."Id" = "c0"."ClientId"
WHERE "c"."ClientId" = @__clientId_0
info: Microsoft.EntityFrameworkCore.Database.Command[20101]
Executed DbCommand (0ms) [Parameters=[@__clientId_0='?' (Size = 3)], CommandType='Text', CommandTimeout='30']
SELECT "c0"."Id", "c0"."ClientId", "c0"."GrantType"
FROM "Clients" AS "c"
INNER JOIN "ClientGrantTypes" AS "c0" ON "c"."Id" = "c0"."ClientId"
WHERE "c"."ClientId" = @__clientId_0
info: Microsoft.EntityFrameworkCore.Database.Command[20101]
Executed DbCommand (0ms) [Parameters=[@__clientId_0='?' (Size = 3)], CommandType='Text', CommandTimeout='30']
SELECT "c0"."Id", "c0"."ClientId", "c0"."Scope"
FROM "Clients" AS "c"
INNER JOIN "ClientScopes" AS "c0" ON "c"."Id" = "c0"."ClientId"
WHERE "c"."ClientId" = @__clientId_0
info: Microsoft.EntityFrameworkCore.Database.Command[20101]
Executed DbCommand (0ms) [Parameters=[@__clientId_0='?' (Size = 3)], CommandType='Text', CommandTimeout='30']
SELECT "c0"."Id", "c0"."ClientId", "c0"."Type", "c0"."Value"
FROM "Clients" AS "c"
INNER JOIN "ClientClaims" AS "c0" ON "c"."Id" = "c0"."ClientId"
WHERE "c"."ClientId" = @__clientId_0
info: Microsoft.EntityFrameworkCore.Database.Command[20101]
Executed DbCommand (0ms) [Parameters=[@__clientId_0='?' (Size = 3)], CommandType='Text', CommandTimeout='30']
SELECT "c0"."Id", "c0"."ClientId", "c0"."Created", "c0"."Description", "c0"."Expiration", "c0"."Type", "c0"."Value"
FROM "Clients" AS "c"
INNER JOIN "ClientSecrets" AS "c0" ON "c"."Id" = "c0"."ClientId"
WHERE "c"."ClientId" = @__clientId_0
info: Microsoft.EntityFrameworkCore.Database.Command[20101]
Executed DbCommand (0ms) [Parameters=[@__clientId_0='?' (Size = 3)], CommandType='Text', CommandTimeout='30']
SELECT "c0"."Id", "c0"."ClientId", "c0"."Provider"
FROM "Clients" AS "c"
INNER JOIN "ClientIdPRestrictions" AS "c0" ON "c"."Id" = "c0"."ClientId"
WHERE "c"."ClientId" = @__clientId_0
info: Microsoft.EntityFrameworkCore.Database.Command[20101]
Executed DbCommand (0ms) [Parameters=[@__clientId_0='?' (Size = 3)], CommandType='Text', CommandTimeout='30']
SELECT "c0"."Id", "c0"."ClientId", "c0"."PostLogoutRedirectUri"
FROM "Clients" AS "c"
INNER JOIN "ClientPostLogoutRedirectUris" AS "c0" ON "c"."Id" = "c0"."ClientId"
WHERE "c"."ClientId" = @__clientId_0
info: Microsoft.EntityFrameworkCore.Database.Command[20101]
Executed DbCommand (0ms) [Parameters=[@__clientId_0='?' (Size = 3)], CommandType='Text', CommandTimeout='30']
SELECT "c0"."Id", "c0"."ClientId", "c0"."Key", "c0"."Value"
FROM "Clients" AS "c"
INNER JOIN "ClientProperties" AS "c0" ON "c"."Id" = "c0"."ClientId"
WHERE "c"."ClientId" = @__clientId_0
info: Microsoft.EntityFrameworkCore.Database.Command[20101]
Executed DbCommand (0ms) [Parameters=[@__clientId_0='?' (Size = 3)], CommandType='Text', CommandTimeout='30']
SELECT "c0"."Id", "c0"."ClientId", "c0"."RedirectUri"
FROM "Clients" AS "c"
INNER JOIN "ClientRedirectUris" AS "c0" ON "c"."Id" = "c0"."ClientId"
WHERE "c"."ClientId" = @__clientId_0
fail: IdentityServer4.Validation.AuthorizeRequestValidator[0]
redirect_uri is missing or too long
{
"ClientId": "mvc",
"AllowedRedirectUris": [
"https://localhost:5002/signin-oidc"
],
"SubjectId": "63c9887e-75eb-4099-b368-9d4fd6bf8299",
"RequestedScopes": "",
"PromptMode": "",
"Raw": {
"client_id": "mvc",
"amp;redirect_uri": "https://localhost:5002/signin-oidc",
"amp;response_type": "code",
"amp;scope": "openid profile webClaims",
"amp;code_challenge": "vLk6eGikeB7TTzTUva3VQVAOi0IcCLaP93d8Wsx-85s",
"amp;code_challenge_method": "S256",
"amp;response_mode": "form_post",
"amp;nonce": "638042572307173644.YjAxY2RhODctMTY2OS00ZDNjLWJmOWQtODNjYjFkMmE0MjBiMzZkZDJjYjctYjBhOS00Yzc1LTg3ODgtMGY4NzY2NmFlMzRj",
"amp;state": "CfDJ8IuGKdJpkDxNjX0iOT5Ekdac6izbbNBVp62kcZ5xyW5PITxN5tvou4bUpXawe8aR0D4h6fUFpB_4CNYGBKbEjCdwcjqKHtdBdDT2hAnrrhhG4keG6VmQrCPoaKwdsJChplAl6jUlfwSNrJzSaFTq0NwsSwwtGMVEZyiabaFLtXBKYUIn1EP9eGpW51WhBxjycRg_WzIQVHapW12EGA3OqPHkN0R693HtrkQps-wCzC6l3QrIQOV0kBN3JbSvY1FYXXhO3JM76U6msf-L0pXIwqfg01RWeoP8jeBiXvKVHLQ20zsmB0VrqD3ZUL-AfV-fldnYIp6ocMHw1yWQUqzHmnJwCG9kVCCtz8ZMI9LENGGL2rk0YSyK1EcRmKX0t3c4Qw",
"amp;x-client-SKU": "ID_NETSTANDARD2_0",
"amp;x-client-ver": "6.10.0.0"
}
}
fail: IdentityServer4.Endpoints.AuthorizeCallbackEndpoint[0]
Request validation failed
info: IdentityServer4.Endpoints.AuthorizeCallbackEndpoint[0]
{
"ClientId": "mvc",
"AllowedRedirectUris": [
"https://localhost:5002/signin-oidc"
],
"SubjectId": "63c9887e-75eb-4099-b368-9d4fd6bf8299",
"RequestedScopes": "",
"PromptMode": "",
"Raw": {
"client_id": "mvc",
"amp;redirect_uri": "https://localhost:5002/signin-oidc",
"amp;response_type": "code",
"amp;scope": "openid profile webClaims",
"amp;code_challenge": "vLk6eGikeB7TTzTUva3VQVAOi0IcCLaP93d8Wsx-85s",
"amp;code_challenge_method": "S256",
"amp;response_mode": "form_post",
"amp;nonce": "638042572307173644.YjAxY2RhODctMTY2OS00ZDNjLWJmOWQtODNjYjFkMmE0MjBiMzZkZDJjYjctYjBhOS00Yzc1LTg3ODgtMGY4NzY2NmFlMzRj",
"amp;state": "CfDJ8IuGKdJpkDxNjX0iOT5Ekdac6izbbNBVp62kcZ5xyW5PITxN5tvou4bUpXawe8aR0D4h6fUFpB_4CNYGBKbEjCdwcjqKHtdBdDT2hAnrrhhG4keG6VmQrCPoaKwdsJChplAl6jUlfwSNrJzSaFTq0NwsSwwtGMVEZyiabaFLtXBKYUIn1EP9eGpW51WhBxjycRg_WzIQVHapW12EGA3OqPHkN0R693HtrkQps-wCzC6l3QrIQOV0kBN3JbSvY1FYXXhO3JM76U6msf-L0pXIwqfg01RWeoP8jeBiXvKVHLQ20zsmB0VrqD3ZUL-AfV-fldnYIp6ocMHw1yWQUqzHmnJwCG9kVCCtz8ZMI9LENGGL2rk0YSyK1EcRmKX0t3c4Qw",
"amp;x-client-SKU": "ID_NETSTANDARD2_0",
"amp;x-client-ver": "6.10.0.0"
}
}
從提示來看，是返回地址出錯了，redirect_url為空或是太長，進數據庫查看，配置是沒有問題的，從控制臺返回的信息來看，好奇怪，地址前面多了一個amp; ，一看明顯是轉換出現了問題，進數據庫再次確認查看，地址中不帶這個東西，打開后臺的代碼，仔細研究，如下：
/Account/Login 方法
....省略若干
if (result.Succeeded)
{
_logger.LogInformation("用戶成功登錄.");
if (context != null)
{
if (context.IsNativeClient())
{
// The client is native, so this change in how to
// return the response is for better UX for the end user.
return this.LoadingPage("Redirect", returnUrl);
}
// we can trust model.ReturnUrl since GetAuthorizationContextAsync returned non-null
//return Redirect(returnUrl);
return Json(new { result = "OK", msg = $"登錄成功.", returnUrl=returnUrl });
}
// request for a local page
if (Url.IsLocalUrl(returnUrl))
{
//return Redirect(returnUrl);
return Json(new { result = "OK", msg = $"登錄成功.", returnUrl = returnUrl });
}
如上所示，紅色的代碼已被我修改成綠色那一行。去前臺登錄處console.log(url) 輸出一下看看，得到下面跳轉地址：
/connect/authorize/callback?client_id=mvc&redirect_uri=https%3A%2F%2Flocalhost%3A5002%2Fsignin-oidc&response_type=code&scope=openid%20profile%20webClaims&code_challenge=vLk6eGikeB7TTzTUva3VQVAOi0IcCLaP93d8Wsx-85s&code_challenge_method=S256&response_mode=form_post&nonce=638042572307173644.YjAxY2RhODctMTY2OS00ZDNjLWJmOWQtODNjYjFkMmE0MjBiMzZkZDJjYjctYjBhOS00Yzc1LTg3ODgtMGY4NzY2NmFlMzRj&state=CfDJ8IuGKdJpkDxNjX0iOT5Ekdac6izbbNBVp62kcZ5xyW5PITxN5tvou4bUpXawe8aR0D4h6fUFpB_4CNYGBKbEjCdwcjqKHtdBdDT2hAnrrhhG4keG6VmQrCPoaKwdsJChplAl6jUlfwSNrJzSaFTq0NwsSwwtGMVEZyiabaFLtXBKYUIn1EP9eGpW51WhBxjycRg_WzIQVHapW12EGA3OqPHkN0R693HtrkQps-wCzC6l3QrIQOV0kBN3JbSvY1FYXXhO3JM76U6msf-L0pXIwqfg01RWeoP8jeBiXvKVHLQ20zsmB0VrqD3ZUL-AfV-fldnYIp6ocMHw1yWQUqzHmnJwCG9kVCCtz8ZMI9LENGGL2rk0YSyK1EcRmKX0t3c4Qw&x-client-SKU=ID_NETSTANDARD2_0&x-client-ver=6.10.0.0
看上去有點兒亂，找個在線網urldecode的地址轉碼一下，變成下面的會好看許多
/connect/authorize/callback?client_id=mvc&redirect_uri=https://localhost:5002/signin-oidc&response_type=code&scope=openid profile webClaims&code_challenge=vLk6eGikeB7TTzTUva3VQVAOi0IcCLaP93d8Wsx-85s&code_challenge_method=S256&response_mode=form_post&nonce=638042572307173644.YjAxY2RhODctMTY2OS00ZDNjLWJmOWQtODNjYjFkMmE0MjBiMzZkZDJjYjctYjBhOS00Yzc1LTg3ODgtMGY4NzY2NmFlMzRj&state=CfDJ8IuGKdJpkDxNjX0iOT5Ekdac6izbbNBVp62kcZ5xyW5PITxN5tvou4bUpXawe8aR0D4h6fUFpB_4CNYGBKbEjCdwcjqKHtdBdDT2hAnrrhhG4keG6VmQrCPoaKwdsJChplAl6jUlfwSNrJzSaFTq0NwsSwwtGMVEZyiabaFLtXBKYUIn1EP9eGpW51WhBxjycRg_WzIQVHapW12EGA3OqPHkN0R693HtrkQps-wCzC6l3QrIQOV0kBN3JbSvY1FYXXhO3JM76U6msf-L0pXIwqfg01RWeoP8jeBiXvKVHLQ20zsmB0VrqD3ZUL-AfV-fldnYIp6ocMHw1yWQUqzHmnJwCG9kVCCtz8ZMI9LENGGL2rk0YSyK1EcRmKX0t3c4Qw&x-client-SKU=ID_NETSTANDARD2_0&x-client-ver=6.10.0.0
OK，我們拿上面的地址去https://localhost:5001 這個IDS4地址去提交，也就是在瀏覽器地址欄粘上上面的地址，回車，注意觀察控制臺，報錯信息果斷出現了，看來就是這里編碼轉換出錯了，錯誤的把&變成& ，引起程序不能正確識別URL引起的，我們替換處理一下，再在瀏覽器提交，發現正常跳轉，至此，問題完美解決。
